1 3/8 TRIPLE GLAZE WINDOW
OVERVIEW

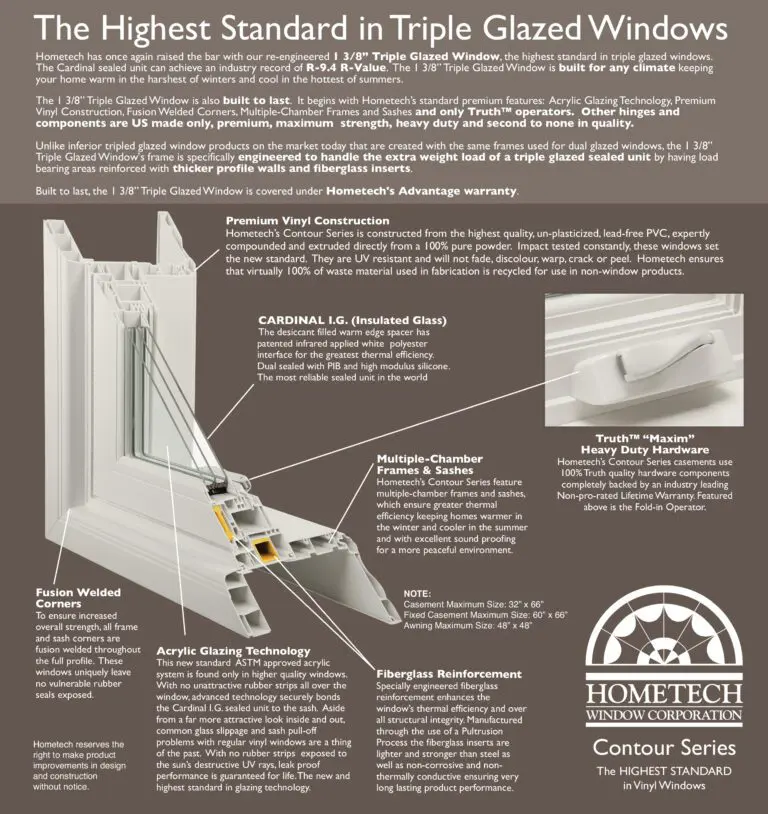

Hometech has once again raised the bar with our re-engineered 1 3/8 Triple Glaze Window, the highest standard in triple glaze windows. The
Cardinal sealed unit can achieve an industry record of R-9.4 R-Value. The 1 3/8 Triple Glaze Window is built for any climate keeping your
home warm in the harshest of winters and cool in the hottest of summers.
The 1 3/8 Triple Glaze Window is also built to last. It begins with Hometech’s standard premium features: Acrylic Glazing Technology, Premium Vinyl
Construction, Fusion Welded Corners, Multiple-Chamber Frames and Sashes as well as Truth and other premium maximum heavy duty
operators and hinges, which are made in the U.S.A. and second to none in quality.

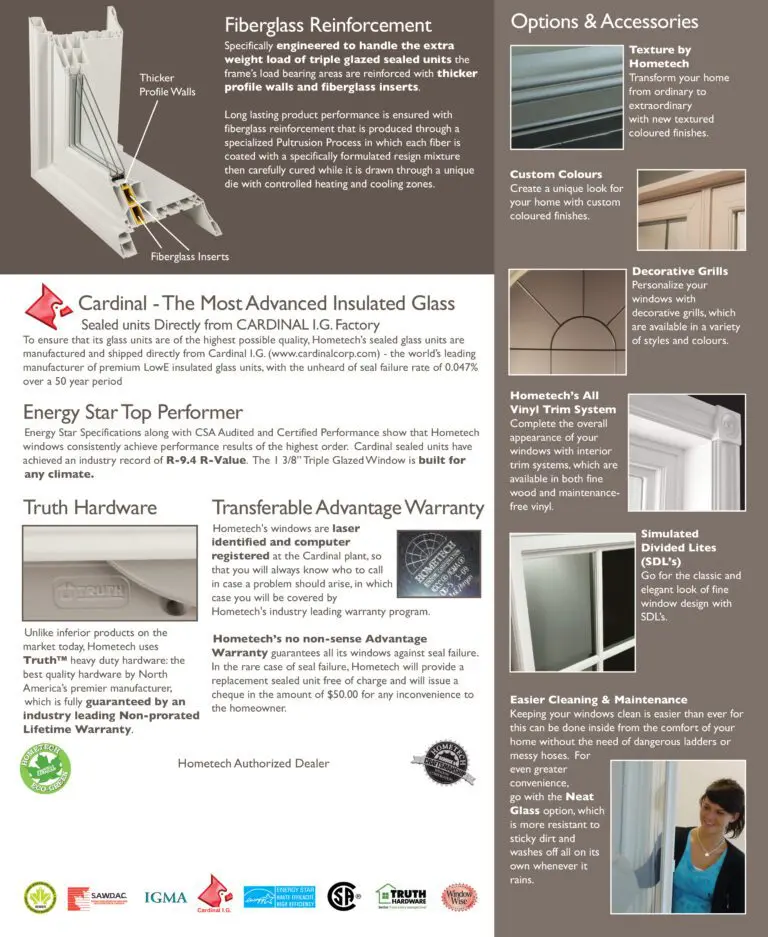

Unlike inferior triple glazed window products on the market today that are created with the same frames used for dual glazed windows, the 1 3/8 Triple
Glaze Window’s frame is specifically engineered to handle the extra weight load of triple glaze sealed unit by having load bearing areas
reinforced with thicker profile walls and fiberglass inserts.
Built to last, the 1 3/8 Triple Glaze Window is covered under Hometech’s Advantage warranty.
FEATURES
THEN & NOW
- Georgian architectural styling, inspired by Greek antiquity of most attractive wood windows of the last 150 years.
- New generation vinyl window appearance inside and with naturally appealing proportions
PREMIUM FINISH
- Highest quality 3 1/4″ primary frames with extensive beautiful options inside and out.
- Mitred contoured corners without butt joints using only the highest technology
BUILT TO LAST
- No unattractive rubber strips.
- Acry-Shield glazing technology – solar protected , natural looking.
- Genuine Schlegel fin-seal, bug maze, and sash interlock for exceptional efficiency.
- Lifetime Warranty
BRILLIANT SASH BALANCES
- Unique “Finished carpentry” appearance with steps and reveals.
- Brilliantly designed and long lasting sash balances for ease of use greatly exceed AAMA requirements
SECURE WHILE EASY TO ACCESS
- GRADE 40 security. Far beyond the highest Canadian standards of windows against forced entry.
- This level of security is unique to Hometech.
ONLY THR FINEST VINYL
- The finest “pure” UPVC formula available. Regrind free.
- Multi-channel welding at all corners for strong, insulating frames and sashes.
CARDINAL SEAL
- 7/8″ overall CARDINAL I.G. sealed units. These avoid and are warrantied against very common and expensive seal failure problems.
- “Cardinal’s superior IG construction translates into a 0.2% seal failure rate over twenty years – plainly the lowest in the industry.
SEAL LIKE NO OTHER
- Infrared-applied white polyester warm edge seal for top thermal performance and great looks.
TRUTH HARDWARE
- Truth Hardware has been recognized as the industry leader in the design and manufacture of quality operating hardware.
- Visit Truth Hardware for more information.
LOCK TILT MECHANISM
- Quick-lock tilt in mechanisms.
- Fibre glass screens are strong and durable while easy to remove
BUILT IN SASH HANDLE
- Built In Sash Handle for durability and ease of operational use.
BEST QUALITY SCREENS
- Excellent visibility insect screen designed to maximize your outward view
- Woven from small, refined yarns that improve the screen’s openness, making visibility sharper and more brilliant
COLOURS
Add the perfect touch to your home by enhancing the natural beauty of your Hometech windows with the perfect colour to complement your home. Our finishes feature the world’s leading nanotechnology are environmentally safe and wonderfully durable. The colours bond at the molecular level for unparalleled beauty and longevity.
Chestnut Brown
Commercial Brown
Sable
Dover Grey
Wicker
Canyon Clay
White
COLOURS WITH TEXTURES
This new and revolutionary textured surface eliminates surface glare and enhances the appearance of depth and solidity. Modern hybrid co-polymer technology actually repels dirt while providing the very latest look to enhance your home. You’ll be amazed.
Chestnut Brown
Commercial Brown
Sable
Dover Grey
Wicker
Canyon Clay
White
DECORATIVE GLASS
Double Glue Chip
Frost
Glue Chip
Rain
Sandblast
BRICKMOULDS
Make your windows appear more prominent by adding exterior brickmoulds. Hometech offers a variety of brickmoulds. Match your window’s colour and choose from many different profiles. All brickmoulds come with a built in rubber gasket removing the need to use calking.
2″
1 1/2″
1″
1 3/16″
5/8″
Zero Extension
INTERIOR OPTIONS
- Solid vinyl jambs, can be cut down to meet most jamb depth needs.
- Vinyl Clad Jamb (Wood Wrapped in Vinyl), can be cut down to meet most jamb depth needs.
- A Variety of Different Wood Jambs (Primed Paint Grade, Pine, Oak, etc.), can be cut down to meet most jamb depth needs.
Vinyl Package Sizes
| Jamb sizes: | 1-1/2″ | 2-1/2″ | 3-3/8″ | 4-5/8″ |
|---|---|---|---|---|
| New Contemporary Casing size: | 3-1/2″ | |||
| Colonial Casing sizes: | 2-5/8″ | 3-3/8″ | ||
| Rosette sizes: | 2-5/8″ | 3-3/8″ |
Colonial
New Contemporary
GRILLS
Finish your windows with just the right touch by incorporating beautiful grillwork of various styles and dimensions. Choose the refined borders of the ‘prairie’ style to the classic beauty of simulated divided lites (SDL’s), which feature the look of individual window framing with an interior spacer bar look as well. Simply beautiful. Or feel free to choose another popular style.
5/8″ BRASS
5/8″ WHITE
5/8″ WHITE / SANDAL WOOD
5/8″ PEWTER
SDL SHADOW BAR
1″ WHITE
WHITE GEORGIAN
1″ WHITE GEORGIAN
5/16″ BRASS
5/16″ WHITE
5/16″ PEWTER
WHITE PENCIL
PEWTER PENCIL
BRASS PENCIL
SPECIFICATIONS
Please Note: Width Sizes – Minimum 16″ to Maximum 36″
Height Sizes – Minimum 16″ to Maximum 80″
SCREENS
STANDARD FIBER GLASS
Phiferglass, Phifer’s trademarked fiberglass screening, has been the standard in the industry for decades. All three products are woven from permanent glass yarn, which has been coated with a protective vinyl to ensure lasting beauty, color and flexibility and will not rust, corrode or stain. They are produced under the most exacting conditions to meet rigid specifications and have all passed 1200 hours of QUV accelerated weathering.
Technical Data
Standard Widths
Standard Roll Length
Standard Colors
24″ to 84″ (60.9cm to 213.4cm); other widths available upon request
800′, 600′ and 300′ ROM’s (243.84m, 182.8m and 91.4m); 100′ rolls (30.48m)
Charcoal and Silver Gray
PET SCREEN
Pet Screen is a heavy-duty, vinyl-coated polyester insect screening that is ideal for use in high traffic areas. Pet resistant and tear and puncture resistant, Pet Screen is stronger than regular insect screening. It is excellent for use in patio and porch enclosures as well as windows and doors, and installs like regular insect screening.
Technical Data
Standard Widths
Standard Roll Length
Standard Colors
36″ (91.4cm), 48″ (121.9cm), 60″ (152.4cm), 72″ (182.9cm), 84″ (213.4cm), 96″ (243.8) and 120″ (304.8cm)
100′ (30.48m) in all widths and 50′ (15.24m) in all widths except 120″
BLACK
BETTERVUE
BetterVue insect screen is an improved Visibility screen (iVis) that offers clearer views with enhanced insect screen performance. It is ideal for any situation where homeowners seek a better view with improved airflow and insect protection.
- Greater openness provides 20% better airflow, allowing light and breezes to flow through
- 20% more optical clarity for a sharp, more brilliant outward view.
- Improves light transmittance in low-E glass windows with 10% better insect protection
- Passed accelerated weathering tests (QUV 1200hrs. and Xenon Arc 2500 Kjs.)
- GREENGUARD certified
- Infused with Microban antimicrobial product protection
Technical Data
Standard Widths
Standard Roll Length
Standard Colors
ROM’s: 18″ to 72″ (45.7cm to 182.9cm); 100′ Rolls: 24″ to 84″ (60.9cm to 213.4cm)
600′ ROM’s (182.8m) and 100′ rolls (30.48m)
BLACK
HANDLE OPTIONS
STANDARD HANDLE
This operator will provide a full 90 degrees of window opening and disconnects easily from the sash for cleaning.
FOLDING HANDLE
This operator features a peak operating torque approximately 28% lower than Truth’s Traditional Single Arm Operators (depending on mounting location).
ENCORE FOLDING OPERATOR
Encore® Series Nesting Operator Covers Offer A Smooth Contemporary Look Truth’s new “nesting” cover for the Encore Series of operators provides options to an already stylish design. Encore operators give you all the strength and performance characteristics you need in an operator with the flexibility of handle and cover options.
Full-Flip Handle
The Full-Flip Handle design is engineered to help maintain its “open” position without retracting in on itself during operation. The handle provides smooth operation with a more contemporary look when nested and allows for easy screen removal without removing the crank.
OPEN
CLOSED
RATINGS
| Style | Material | Brand Name | Product Name | Model | Glaze | SHGC | Energy | Umet | Uimp | ENERGY STAR Zone(s) |
|---|---|---|---|---|---|---|---|---|---|---|
| High Profile Fixed | Vinyl | Hometech | Contour Series | 400 | 2 | 0.57 | 35 | 1.65 | 0.29 | ABCD |
| Low Profile Fixed | Vinyl | Hometech | Contour Series | 400A | 2 | 0.57 | 39 | 1.65 | 0.29 | ABCD |
| Single Hung | Vinyl | Hometech | Contour Series | 250 | 2 | 0.53 | 33 | 1.79 | 0.32 | ABC |
| Single Slider | Vinyl | Hometech | Contour Series | 200 | 2 | 0.53 | 30 | 1.8 | 0.32 | ABC |
| Duble Slider | Vinyl | Hometech | Contour Series | 300 | 2 | 0.50 | 31 | 1.81 | 0.32 | AB |
| Casement(single) | Vinyl | Hometech | Contour Series | 100 | 2 | 0.43 | 30 | 1.69 | 0.3 | AB |
| Fixed casement | Vinyl | Hometech | Contour Series | 150A | 2 | 0.44 | 28 | 1.70 | 0.3 | AB |
| Fixed casement | Vinyl | Hometech | Contour Series | 150 | 2 | 0.42 | 28 | 1.67 | 0.29 | AB |
| Double Hung | Vinyl | Hometech | Contour Series | 350 | 2 | 0.50 | 31 | 1.80 | 0.32 | AB |
| Awning (single) | Vinyl | Hometech | Contour Series | 125 | 2 | 0.45 | 29 | 1.74 | 0.31 | AB |
| Casement (single) | Vinyl | Hometech | Contour Series | 100A | 2 | 0.44 | 30 | 1.74 | 0.31 | AB |
ENERGY EFFICIENCY VALUES
Umet = U-value (W/m_ – K) – The lower the number, the more energy efficient the product.
Uimp = U-value (Btu/h*ft2*F) – The lower the number, the more energy efficient the product.
SHGC = Solar Heat Gain Coefficient – The higher the number, the higher the solar gain.
ER = Energy Rating (W/m2 or dimensionless) – The higher the number, the more energy efficient the product.
The ER (Energy Rating) format was changed to all positive numbers (dimensionless) in October, 2004 by CSA (Canadian Standards Association) to address consumer confusion over negative numbers. The older format had a mixture of negative and positive numbers (W/m2). In our listings, all ER numbers that appear in the older format are shown in bold coloured type. An approximate conversion to the new format can be made by adding 33 to these numbers.
